1AWZB  Intelligent digital display automatic pump

LOADING IMAGES

Product description:

Imported Italian oil seals;
Imported original circuit control;
New high-efficiency motor design;
Flow rate intelligent control;
Delayed start;
No water cut-off;
Water stop stop;
Stuck machine protection;
Air leakage detection.

Product Usage:

This series of electric pumps is an ideal new type of high-efficiency and energy-saving household pumps, which is widely used in water collection for family life, water lifting for wells, tap water pressurization, garden irrigation, water supply for vegetable greenhouses, and is especially suitable for pressurization of water heater pipelines with insufficient water pressure to prevent the phenomenon of water supply being cold or hot.

Conditions of Use:

1、Medium temperature shall not exceed +80℃.
2、pH value is between 6.5~8.5.
3、Solid impurities not more than 0.1%, particle size not more than 0.2mm.

Product Details

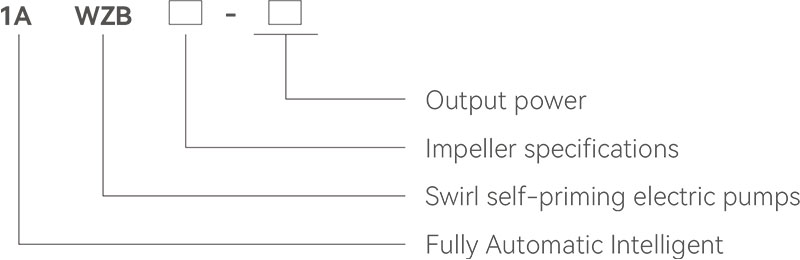

Model Description:

Technical parameters:

Model Power
(kW)
Maximum flow
(m³/h)
Maximum head
(m)
Suction range
(m)
Voltage
(V)
Piping size
(mm)
1AWZB-200 Intelligent Digital Display 0.2 1.8 25 9 220 25
1AWZB-300 Intelligent Digital Display 0.3 2 30 9 220 25
1AWZB-400 Intelligent Digital Display 0.4 2.5 35 9 220 25
1AWZB-600 Intelligent Digital Display 0.6 3 40 9 220 25
1AWZB-800 Intelligent Digital Display 0.8 3.5 50 9 220 25

Note: Synchronized speed: 3000 (r/min), using a power supply frequency of 50 (Hz).
