Product description:
The JET series self priming jet electric pump is a compact water supply system. Our company's technology personnel introduced Italian technology and developed it, using the principle of water jet to achieve self suction function and small flow rate, high head (high suction).
Product Usage:
Domestic water collection
Well water lifting
Pipeline Pressurization
Garden watering
Vegetable greenhouse watering
Garden watering and farming
Conditions of use:
1. The conveying medium is a liquid at room temperature, clean, non corrosive, and free of solid particles and fibers.
2. The pH value of the conveying medium is 6.5~8.5.
3. The power frequency is 50Hz, the voltage is single-phase AC 220V (three-phase 380V), and the voltage fluctuation range is 0.9~1.1 times the rated value.

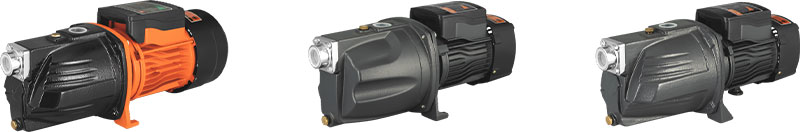

Style of your choice:

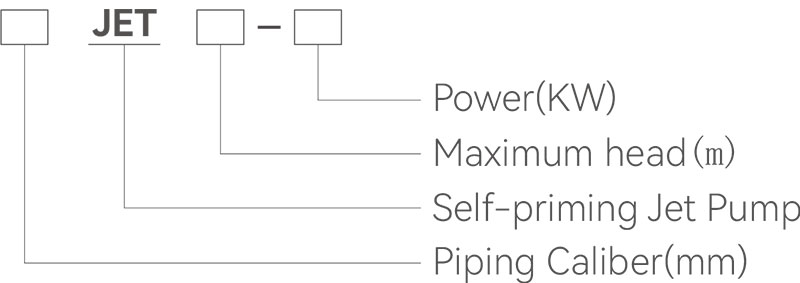

Model Description:
Product Parameters:
| Model | Power (kW) |
Flow (m³/h) |
Head range (m) |
Maximum head (m) |
Suction (m) |
Voltage (V) |
Piping (mm) |
| 25JET-45-0.75 | 0.75 | 2 | 32-48 | 45 | 9 | 220 | 25 |
| 25JET-55-1.1 | 1.1 | 4 | 39-59 | 55 | 12 | 220 | 25 |
| 25JET-60-1.5 | 1.5 | 5.5 | 42-64 | 60 | 15 | 220 | 25 |
| 25JET-70-1.8 | 1.8 | 5.5 | 50-72 | 70 | 15 | 220/380 | 25 |
| 25JET-75-2.2 | 2.2 | 7 | 54-78 | 75 | 20 | 220/380 | 25 |
Note: Synchronized speed: 3000 (r/min), using a power supply frequency of 50 (Hz).
