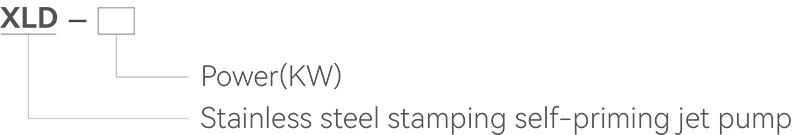

XLD  Stainless steel stamping self-priming jet pump

Product description:

XLD stainless steel jet electric pump (to referred to as electric pump), using centrifugal impeller radial guide leaf a unique structure of the jet, the principle is that the pressure of water first through the nozzle caused by the vacuum, and then the low water level of the liquid suction to the pump inlet by the pump pressurization discharge; body, pump cover and pump shaft made of stainless steel, the electric motor for the asynchronous motor, with a suction range of deep, high head, short self-absorption time, smooth operation and other characteristics.

Product Use:

Small size, light weight, compact structure, simple and convenient installation, suitable for conveying clean, non-containing solid particles or fibers non-flammable and explosive, stainless steel does not produce significant corrosion of the liquid.

Pumping of well water.
Industrial cleaning.
Tap water pressurization.
Garden watering.
Pure water filling.

Conditions of Use:

The electric pump should be able to work continuously and normally under the following operating conditions:
1, the temperature of the medium - generally does not exceed +40 ℃.
2、Media pH value is between 6.5~8.5.
3、Maximum pressure: 0. 6MPa.
4, the volume ratio of solid impurities does not exceed 0.1%, particle size is not greater than 0.2mm.
5、Power frequency is 50Hz, voltage is single-phase AC 220V, three-phase AC 380V, voltage fluctuation range is rated ±10%.
