H  Permanent magnet variable frequency multi-stage centrifugal pump

LOADING IMAGES

 Product Features:

Liquid: particle-free, non-corrosive liquid
Liquid temperature: 0°C~60°C
Ambient temperature: <40°C
Maximum pressure: 10bar
Continuous service: S1
Insulation: B
Protection: IP X4

Product Usage:

Domestic Water Supply
Water supply systems
Cooling Systems
Pressurization system

Product Details

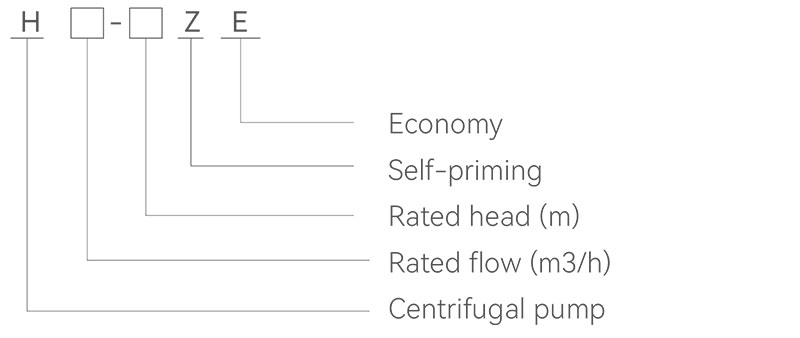

Model Description:

Technical parameters:

Model Power Amps
(A)		 Flow
(m³/h)		 Maximum flow
(m³/h)		 Head
(m)		 Maximum head
(m)		 Suction range
(m)		 Voltage
(V)		 Speed
(r/min)		 Piping size
(mm)
HP KW
H2-32 0.75 0.55 3.6 2 4.2 32 42 / 220 4800 1"x1"
H3-50 1.5 1.1 7.5 3 5.5 50 65 / 220 6200 1"x1"
H2-32E 0.75 0.55 3.6 2 4.2 32 42 / 220 4800 1"x1"
H3-50E 1.5 1.1 7.5 3 5.5 50 65 / 220 6200 1"x1"
H2-32Z 0.75 0.55 3.5 2 5.5 32 45 6 220 4000 1"x1"
H3-40Z 1 0.75 6.2 3 7 40 48 6 220 4000 1"x1"
H8-45 3 2.2   8   45   / 220 4800 2"x2"

Note: Note:Use a power supply frequency of 50/60 (Hz).
