CDL(F)  Permanent magnet variable frequency vertical multi-stage centrifugal pump

LOADING IMAGES

 Product Features:

Liquid: particle-free, non-corrosive liquid
Liquid temperature: 0°C~60°C
Ambient temperature: <40°C
Maximum pressure: 10bar
Continuous service: S1
Insulation: B
Protection: IP X4

Product Usage:

Domestic Water Supply
Pressurized system
Water Distribution
Cooling Systems
Heating systems
Irrigation

Product Details

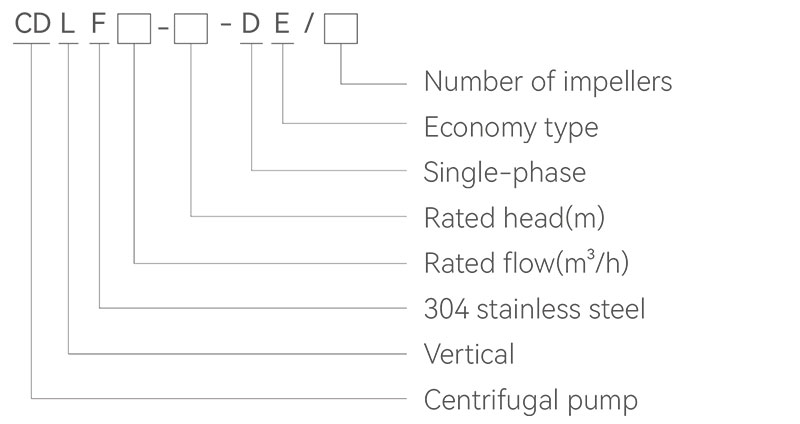

Model Description:

Technical parameters:

Model Power Amps
(A)		 Flow
(m³/h)		 Head
(m)		 Voltage
(V)		 Number of impellers
(r/min)		 Speed
(r/min)		 Piping size
(mm)
HP KW
CDL2-130DE/11 3 2.2 8.8 2 130 220 25 3600 25
CDLF2-130DE/11 3 2.2 8.8 2 130 220 25 3600 25
CDL2-130D/11 3 2.2 8.8 2 130 220 25 3600 25
CDLF2-130D/11 3 2.2 8.8 2 130 220 25 3600 25
CDL2-130D/11 3 2.2 4.9 2 130 380 25 3600 25
CDLF2-130/11 3 2.2 4.9 2 130 380 11 3600 25
CDL2-176/15 4 3 6.9 2 176 380 15 3600 25
CDLF2-176/15 4 3 6.9 2 176 380 15 3600 25
CDL2-212/18 5.5 4 8.8 2 212 380 18 3600 25
CDLF2-212/18 5.5 4 8.8 2 212 380 18 3600 25
CDL2-312/26 7.5 5.5 12.4 2 312 380 26 3600 25
CDLF2-312/26 7.5 5.5 12.4 2 312 380 26 3600 25
CDL4-72DE/6 3 2.2 8.8 4 72 220 6 3600 32
CDLF4-72DE/6 3 2.2 8.8 4 72 220 6 3600 32
CDL4-72D/6 3 2.2 8.8 4 72 220 6 3600 32
CDLF4-72D/6 3 2.2 8.8 4 72 220 6 3600 32
CDL4-72/6 3 2.2 4.9 4 72 380 6 3600 32
CDLF4-72/6 3 2.2 4.9 4 72 380 6 3600 32
CDL4-106/8 4 3 6.9 4 106 380 8 3600 32
CDLF4-106/8 4 3 6.9 4 106 380 8 3600 32
CDL4-160/12 5.5 4 8.8 4 160 380 12 3600 32
CDLF4-160/12 5.5 4 8.8 4 160 380 12 3600 32
CDL4-196/16 7.5 5.5 8.8 4 196 380 16 3600 32
CDLF4-196/16 7.5 5.5 8.8 4 196 380 16 3600 32
CDL4-275/22 10 7.5 12.4 4 275 380 22 3600 32
CDLF4-275/22 10 7.5 12.4 4 275 380 22 3600 32
CDL8-45DE/3 3 2.2 8.8 8 45 220 3 3600 40
CDLF8-45DE/3 3 2.2 8.8 8 45 220 3 3600 40
CDL8-45D/3 3 2.2 8.8 8 45 220 3 3600 40
CDLF8-45D/3 3 2.2 8.8 8 45 220 3 3600 40
CDL8-45D/3 3 2.2 4.9 8 45 380 3 3600 40
CDLF8-45/3 3 2.2 4.9 8 45 380 3 3600 40
CDL8-74/5 4 3 6.9 8 74 380 5 3600 40
CDLF8-74/5 4 3 6.9 8 74 380 5 3600 40
CDL8-88/6 5.5 4 8.8 8 88 380 6 3600 40
CDLF8-88/6 5.5 4 8.8 8 88 380 6 3600 40
CDL8-130/8 7.5 5.5 12.4 8 130 380 8 3600 40
CDLF8-130/8 7.5 5.5 12.4 8 130 380 8 3600 40
CDL8-167/12 10 7.5 15.5 8 167 380 12 3600 40
CDLF8-167/12 10 7.5 15.5 8 167 380 2 3600 40
CDL12-32DE/2 3 2.2 8.8 12 32 220 2 3600 50
CDLF12-32DE/2 3 2.2 8.8 12 32 220 2 3600 50
CDL12-32D/2 3 2.2 8.8 12 32 220 2 3600 50
CDLF12-32D/2 3 2.2 8.8 12 32 220 2 3600 50
CDL12-32/2 3 2.2 4.9 12 32 380 2 3600 50
CDLF12-32/2 3 2.2 4.9 12 32 380 2 3600 50
CDL12-50/3 5.5 4 8.8 12 50 380 3 3600 50
CDLF12-50/3 5.5 4 8.8 12 50 380 3 3600 50
CDL12-80/5 7.5 5.5 12.4 12 80 380 5 3600 50
CDLF12-80/5 7.5 5.5 12.4 12 80 380 5 3600 50
CDL12-121/7 10 7.5 15.5 12 121 380 7 3600 50
CDLF12-121/7 10 7.5 15.5 12 121 380 7 3600 50
CDL16-38/2 5.5 4 8.8 16 38 380 2 3600 50
CDLF16-38/2 5.5 4 8.8 16 38 380 2 3600 50
CDL16-58/3 7.5 5.5 12.4 16 58 380 3 3600 50
CDLF16-58/3 7.5 5.5 12.4 16 58 380 3 3600 50
CDL16-72/4 10 7.5 15.5 16 72 380 4 3600 50
CDLF16-72/4 10 7.5 15.5 16 72 380 4 3600 50
CDL20-35/2 5.5 4 8.8 20 35 380 2 3600 50
CDLF20-35/2 5.5 4 8.8 20 35 380 2 3600 50
CDL20-58/3 7.5 5.5 12.4 20 58 380 3 3600 50
CDLF20-58/3 7.5 5.5 12.4 20 58 380 3 3600 50
CDL20-72/4 10 7.5 15.5 20 72 380 4 3600 50
CDLF20-72/4 10 7.5 15.5 20 72 380 4 3600 50
