CHM-DCER  Permanent magnet variable frequency multi-stage centrifugal pump

LOADING IMAGES

 Product Features:

Liquid: particle-free, non-corrosive liquid
Liquid temperature: 0°C~60°C
Ambient temperature: <40°C
Maximum pressure: 10bar
Continuous service: S1
Insulation: B
Protection: IP X4

Product Usage:

Domestic Water Supply
Pressurized system
Water Distribution
Cooling Systems
Heating systems
Irrigation

Product Details

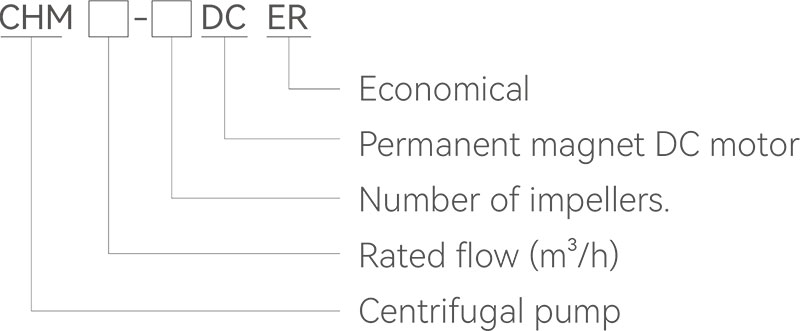

Model Description:

Technical parameters:

Model Power
(kW)		 Amps
(A)		 Flow
(m³/h)		 Maximum flow
(m³/h)		 Head
(m)		 Maximum head
(m)		 Voltage
(V)		 Speed
(r/min)		 Piping size
(mm)
HP KW
CHM8-3DCER 3.0 2.2 10 8 13 45 55 220 4000 11/2"x11/2"
CHM12-3DCER 3.0 2.2 10 12 16 30 55 220 4000 2"x2"

Note:Use a power supply frequency of 50/60 (Hz).
