CDW  Permanent magnet variable frequency multi-stage centrifugal pump

LOADING IMAGES

 Product Features:

Liquid: particle-free, non-corrosive liquid
Liquid temperature: 0°C~60°C
Ambient temperature: <40°C
Maximum pressure: 10bar
Continuous service: S1
Insulation: B
Protection: IP X4

Product Usage:

Domestic Water Supply
Pressurized system
Water Distribution
Cooling Systems
Heating systems
Irrigation

Product Details

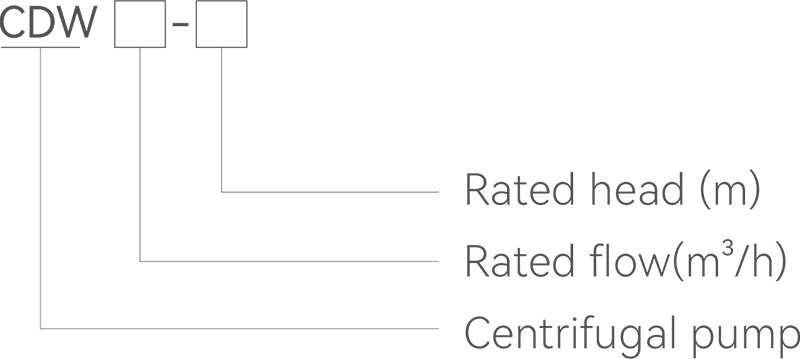

Model Description:

Technical parameters:

Model Power
(kW)		 Amps
(A)		 Flow
(m³/h)		 Maximum flow
(m³/h)		 Head
(m)		 Maximum head
(m)		 Voltage
(V)		 Speed
(r/min)		 Piping size
(mm)
HP KW
CDW4-30 1 0.75 6.2 4 8 30 37 220 4000 11/4"x1"
CDW4-45 2 1.5 6.5 4 8 45 55 220 4000 11/4"x1"

Note: Note:Use a power supply frequency of 50/60 (Hz).
